設(shè)備模塊

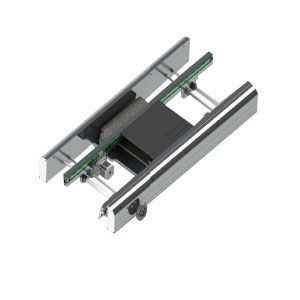

conveyor line can adjust the width size in a wide range, and the bottom lifting positioning block can be absorbed by magnet, which can adjust the position according to the hole position of the jig.

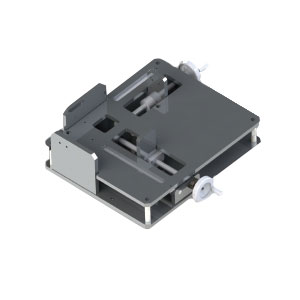

The FPC positioning jig can adjust the length and width positioning size in a wide range, and the adjusting distance can be seen with the scale on the jig, so it is labor-saving and convenient to adjust.

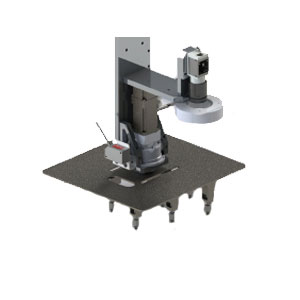

With magnet adsorption, the position of the sucker can be arbitrarily adjusted; the CCD visual inspection on the gripper can accurately correct the error, and the R axis can be rotated to ensure the accuracy of the angle.
The module of a well-known brand with XY axis load up to 60-30KG, Z axis load up to 12KG is used to perform high-speed displacement discharge in each direction.
